Achieving precise volumetric control requires a proper understanding of the relationship between your fluid container and the mechanical driver moving it. A precision driver does not directly measure fluid volume; instead, it controls linear advancement. The micro-stepping motor turns a lead screw to move a pusher block forward at a strictly controlled linear velocity ($dx/dt$).

To translate this linear motion into a highly accurate volumetric flow rate ($dV/dt$), the system relies entirely on the internal cross-sectional area of the installed barrel. Properly matching your syringe sizes to your hardware is the most critical step in optimising fluidic accuracy.

The Mathematical Relationship Between Diameter and Flow Velocity

To understand how barrel selection dictates operational boundaries, you must analyse the geometry of the fluid cylinder. The volumetric flow rate is calculated by multiplying the cross-sectional area of the syringe inner bore by the linear speed of the pusher block:

$Q = A \cdot v = \pi \left(\frac{D}{2} \right) ^2 \cdot v$

Where $Q$ is the volumetric flow rate, $D$ is the inner diameter of the barrel, and $v$ is the linear velocity of the pusher block.

The Impact of Large Diameters

When you scale up to a large-capacity barrel (e.g., $60\text{mL}$ to $100\text{mL}$), the inner diameter increases significantly. Because the diameter is squared in the area equation, small linear movements translate into large volumes of displaced fluid. Large barrels are ideal for high-volume dosing or fast infusions, but they reduce the system's ability to deliver ultra-low, pulse-free microfluidic streams.

The Power of Small Diameters

Conversely, reducing the barrel size down to microliter scales ($10\ \mu\text{L}$ to $100\ \mu\text{L}$) means that the pusher block must travel a significant linear distance to displace a tiny amount of fluid. This drastically increases the volumetric resolution of your setup. If your experiment requires smooth, pulse-free, nanoliter-scale fluid delivery, always select the smallest barrel capacity that can hold your required total volume.

Optimising Flow Rates and Managing System Pressure

Selecting the right container size is also essential for managing physical forces and fluid resistance within your tubing network.

Minimising Mechanical Pulsation

Every stepper motor moves in discrete steps. At ultra-low flow rates, these steps can introduce microscopic variations in pressure, creating tiny pulses in the fluid stream. To optimise syringe pump flow and eliminate these pulses, choose a smaller syringe diameter. This forces the motor to run at a higher step frequency, smoothing out the physical pulses into a continuous, stable stream.

Navigating Linear Force Boundaries

When pushing fluids through tight fluidic channels, microscopic needles, or chromatography columns, the system generates high hydraulic backpressure. The linear force required to overcome this pressure is proportional to the cross-sectional area of the plunger:

$F = P \cdot A$

Where $F$ is the linear force, $P$ is the fluid backpressure, and $A$ is the plunger area. If a large syringe stalls under high pressure, swapping it for a narrower syringe reduces the surface area of the plunger. This allows a standard syringe pump to generate much higher fluid pressures using the same mechanical linear force.

Target Operational Profiles by Sizing Category

Understanding how these mathematical rules translate to standard laboratory equipment simplifies your setup selection process.

· Nanoliter Scales ($10\ \mu\text{L}$ capacity / $\sim 0.5\text{mm}$ diameter): These micro-barrels operate best within nanoliter-per-minute ranges. They are primary choices for delicate cellular micro-injections, localised tissue dosing, and mass spectrometry calibration.

· Microliter Scales ($1\text{mL}$ capacity / $\sim 4.7\text{mm}$ diameter): Ideal for microliter-per-minute target flows. This setup is highly optimised for steady microfluidic chip feeds, precise chemical synthesis loops, and sensitive core laboratory assays.

· Macroliter Scales ($50\text{mL}$ capacity / $\sim 29.0\text{mm}$ diameter): Engineered for rapid milliliter-per-minute delivery profiles. These large-diameter cylinders are best suited for high-throughput automated screening, pilot plant chemical dosing, and bulk fluid transfers.

Adjusting Software Parameters for Custom Dimensions

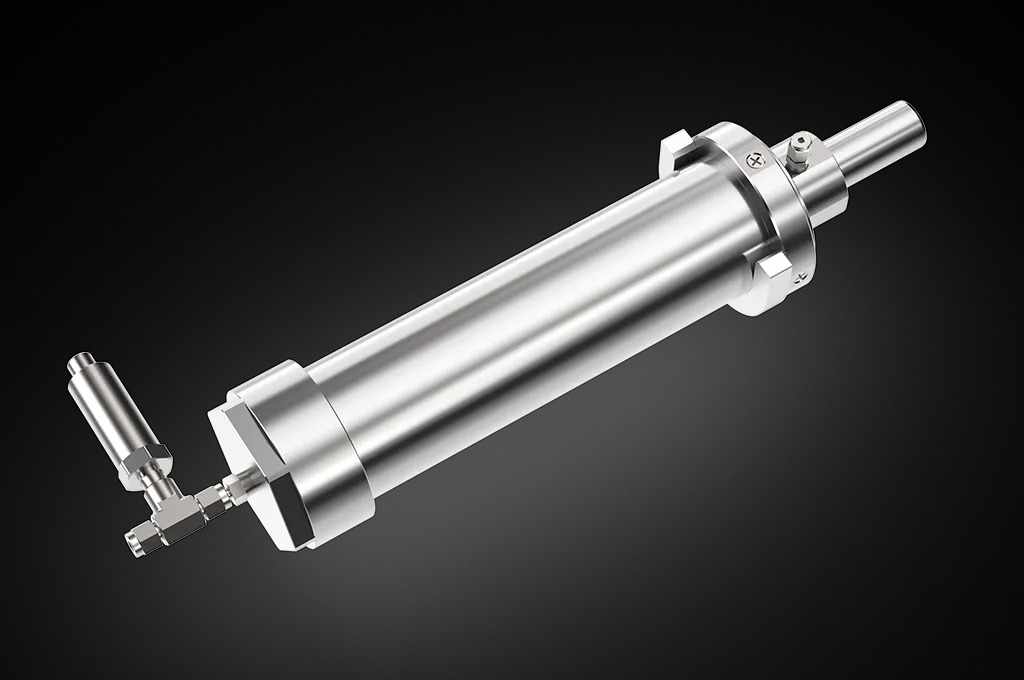

Modern precision fluid drivers include pre-programmed menus with internal diameter profiles for common plastic and glass syringes from major manufacturers. However, when working with specialised stainless-steel cylinders or custom glass fabrications, you must bypass these presets. Always use a digital calliper to verify the exact inner diameter of your custom barrel down to the nearest hundredth of a millimetre, and manually enter this value into your instrument's configuration menu to prevent volumetric errors.

Conclusion

Carefully matching the physical dimensions of your syringe to your flow velocity targets prevents motor stalls, reduces pressure pulses, and ensures strict volumetric precision. For automated sizing charts, diameter look-up databases, and precision fluidic instruments designed to accommodate a wide range of barrel volumes, check out the engineering resources available at chemyx.com.
