Electrospinning is a specialised fabrication technique that uses strong electrostatic fields to draw thin, nanometer-scale fibres from polymer solutions. To achieve structural uniformity and defect-free continuous meshes, the liquid polymer must be delivered to the high-voltage nozzle at a perfectly steady, pulse-free velocity.

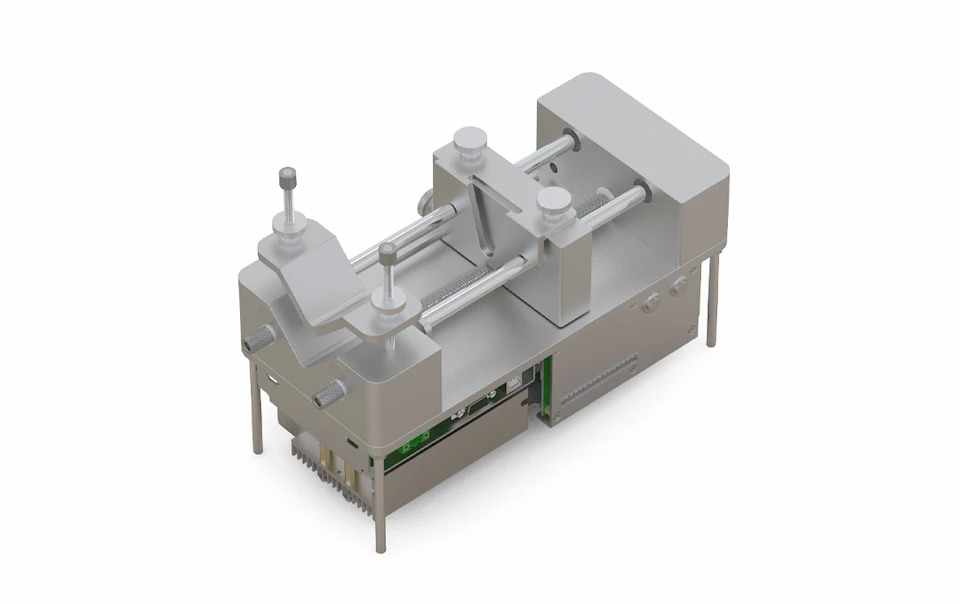

Using an engineered high pressure syringe pump ensures that highly viscous polymer solutions overcome extreme resistance without disrupting the electrospinning process.

Maintaining Fluidic Stability Against High Viscosity and Voltage

The success of electrospinning relies on the delicate balance of electrical forces and fluid surface tension. Fluctuations in fluid pressure can cause the fibre jet to break, leading to uneven fibre deposition or unwanted droplet spray.

Overcoming Polymeric Viscosity

Polymer solutions used in material synthesis (such as polyacrylonitrile or collagen formulations) are often highly viscous and display non-Newtonian flow behaviour. When these thick solutions are pushed through fine-gauge needles, they generate massive backpressure. Standard laboratory fluid drivers quickly stall under these loads. A heavy-duty, high-force delivery platform provides the linear thrust required to maintain a consistent volumetric flow through the nozzle.

High-Voltage Isolation Protocols

During syringe pump spinning, the delivery nozzle is charged with tens of thousands of volts of electricity. If the fluid path is conductive, this electricity can travel backwards through the solution and damage the pump's internal electronics.

· Insulated Components: Use non-conductive PEEK or PTFE fittings to isolate the main chassis from the high-voltage zone.

· Grounding Strategies: Ensure the metal framework of the pump is properly grounded to prevent static charge accumulation on the chassis.

Configuring the System for Continuous Fibre Production

To scale up fibre production from small laboratory samples to continuous industrial sheets, the fluid delivery system must operate non-stop without pressure drops.

Implementing Dual-Pump Switching Loops

A single barrel limits the duration of your spinning run to the volume of that specific syringe. For industrial production, a dual-pump setup is used. While one unit infuses the polymer solution into the high-voltage emitter, the second unit draws fresh solution from a reservoir. Automated switching valves synchronise these actions, enabling continuous, uninterrupted fibre deposition for days.

Optimising the Taylor Cone Formation

At the tip of the electrospinning nozzle, the polymer fluid forms a conical shape known as a Taylor Cone under the influence of the electric field. To keep this cone stable, the fluid supply rate must exactly match the rate at which the fibre is drawn away. If the fluid delivery is too slow, the cone collapses; if it is too fast, the solution drips. Precise micro-stepping motors allow researchers to fine-tune the delivery rate down to fractions of a microliter per minute, keeping the Taylor Cone perfectly balanced.

Mitigating Solvent Evaporation and Needle Clogging

A major operational hurdle in extended material synthesis runs is the premature evaporation of volatile solvents (such as dimethylformamide or acetone) at the emitter tip. This rapid drying leads to "needle clogging" or the formation of a localised polymer skin that blocks the fluid orifice and abruptly spikes line pressure. Modern high-force execution setups handle this by integrating automated coaxial clearing mechanisms or maintaining a micro-controlled over-pressurisation cycle that can physically force out transient microscopic plugs. Additionally, enclosing the fluid delivery interface in a localised environmental chamber with controlled relative humidity and solvent vapour pressure prevents premature desiccation, ensuring that the polymer remains in a stable, fluidic state until the exact moment it experiences electrostatic drawing.

Conclusion

Mastering the mechanics of high-pressure fluid delivery and electronic isolation is essential for producing high-quality, uniform nanofibers during continuous electrospinning workflows. To find high-torque, programmable fluidics hardware engineered to withstand demanding material science applications, explore the high-performance product lineups at chemyx.com.
