Automating laboratory workflows reduces human error, increases experimental throughput, and enables complex, time-dependent fluid delivery profiles that are impossible to execute manually. Most modern precision fluidic drivers communicate via serial interfaces (such as RS232, RS485, or USB virtual COM ports).

By leveraging Python, researchers can easily send programmatic commands to change flow rates, switch operational modes, and synchronise fluid delivery with external sensors or analytical instruments.

Setting Up Your Python Serial Environment

Before writing your automation script, you must establish a physical and logical connection between your control computer and the fluidic hardware.

Hardware Connections and Drivers

Ensure your instrument is connected via its USB or RS232 port (often requiring an RS232-to-USB serial converter cable). Windows users should verify the assigned port number in the Device Manager under "Ports (COM & LPT)", while Linux and macOS users can find it via the terminal using the ls /dev/tty* command.

Installing the pySerial Library

Python requires an external library to handle low-level serial port communications. Open your terminal or command prompt and install the standard pySerial package using pip.

Writing the Automation Script

Most advanced instruments use a text-based ASCII command set. Always consult your hardware manual for the exact command syntax, baud rate, parity, and stop bit configurations required by your specific firmware.

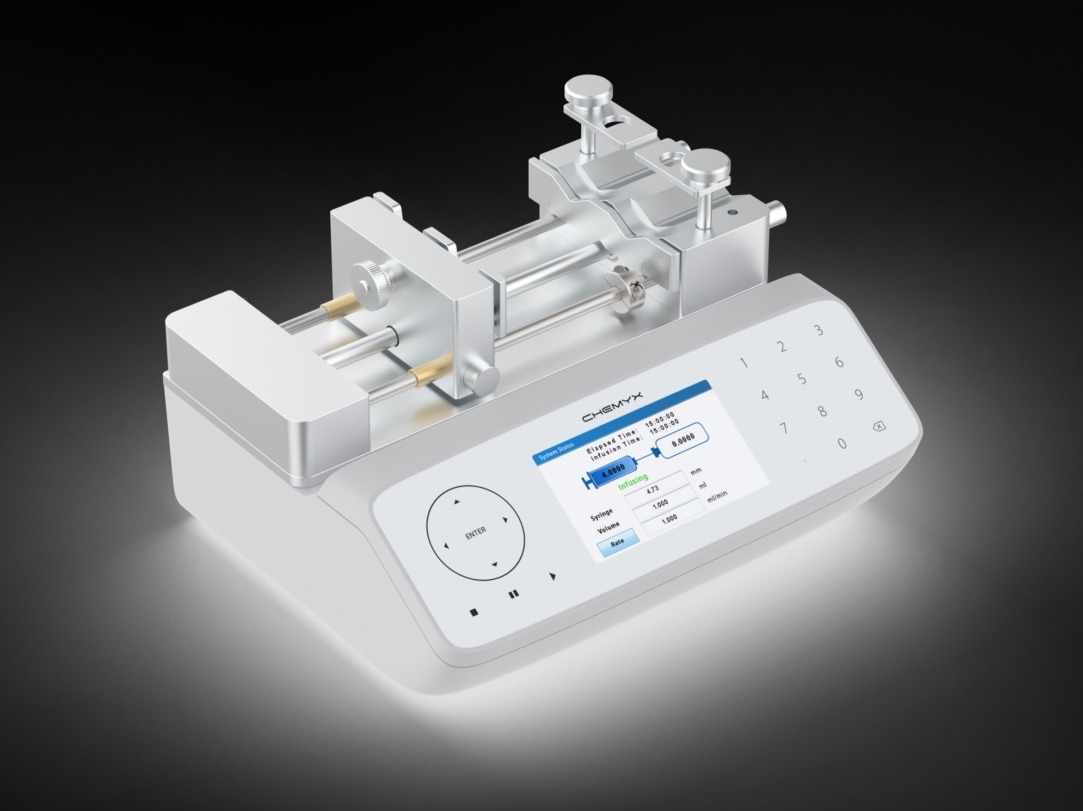

The script below demonstrates how to open a connection, set a target diameter, define a flow rate, and initiate an infusion sequence to automate a syringe pump seamlessly.

Advanced Automation: Closed-Loop Control

Basic scripts use open-loop scheduling where commands are executed purely based on pre-defined timers. However, true laboratory automation often requires closed-loop feedback systems.

Integrating External Sensors

You can expand your script to read data from inline pressure transducers, digital balances, or optical sensors. For example, if a pressure sensor detects a spike exceeding a safe threshold (e.g., due to a clogged microfluidic chip), the Python script can immediately issue a stop command to prevent system damage.

Complex Multi-Step Profiles

Using Python arrays or dictionaries, you can program dynamic scripts that scale flow velocities exponentially, execute precise start-stop patterns for drop-on-demand applications, or control a syringe pump in tandem with automated switching valves to achieve continuous, uninterrupted fluid loops.

Parsing Device Status and Diagnostic Logs

Beyond sending execution instructions, robust automation scripts should constantly listen to the hardware's feedback queries. By programming Python to routinely transmit status requests (such as asking for the current position of the pusher block or reading the real-time velocity), your code can parse the incoming ASCII strings to determine exactly how much fluid remains in the barrel. This bidirectional data exchange allows your master program to log precise timestamps for every millilitre dispensed, generate automatic audit trails for regulatory compliance, and safely pause dependent laboratory instruments if an unexpected mechanical obstruction or empty barrel state is detected.

Conclusion

Harnessing Python for instrument automation transforms a standalone piece of hardware into a responsive component of a smart laboratory ecosystem. This programming capability allows you to execute highly complex fluidic protocols with absolute temporal precision. For technical documentation, robust API command sets, and programmable hardware designed for seamless software integration, explore the advanced automation resources provided by chemyx.com.
